What is now widely recognized as an established technology in modern railway maintenance began at LINSINGER with a simple yet revolutionary idea: Can railheads be machined directly on track by milling?

Thirty years ago, LINSINGER made railway history with the world’s first mobile rail milling train. Today, the company is globally recognized as the inventor of rail milling and has continuously advanced this technology over the decades.

However, the story began much earlier.

Founded in 1939 as a small Austrian mechanical engineering company, LINSINGER steadily evolved over the following decades and laid the foundation for numerous innovations in milling technology.

A major milestone followed in 1957 with the development of high-performance peripheral milling technology. Just one year later, this innovation inspired a visionary concept: the maintenance of rails by milling.



In 1958, the first stationary rail milling unit was built. For the first time, worn railheads could be reconditioned with exceptional precision. The machine remained in operation for more than 30 years - an impressive proof of the quality, durability, and sustainability of the Linsinger technology.

First Rail Milling Train: LINSINGER delivered its first SF03 rail milling machine to a German operator in 1995, marking a milestone in the evolution of modern rail maintenance.

The Step Toward Mobile Rail Maintenance

In the late 1980s, LINSINGER posed a crucial question: How can rail milling be carried out directly on track?



The answer was a prototype that integrated a milling unit into a refurbished tamping machine. Between 1989 and 1992, the system underwent extensive testing and continuous development. The knowledge gained during this period laid the foundation for an entirely new approach to rail maintenance: mobile rail milling - efficient, flexible, and economical.

The major breakthrough came in 1995. After years of development and field testing, LINSINGER built the world’s first rail milling train, the SF03. Despite numerous technical challenges, the machine was successfully delivered to a German railway construction company. Remarkably, the first SF03 still remains in service today, more than 30 years later.

Why Rail Milling Became So Important.

Increasing axle loads, higher operating speeds, and growing rail traffic continue to place greater demands on railway infrastructure worldwide. During operation, rails are exposed to enormous stresses. Plastic deformation, corrugation, and rolling contact fatigue (RCF) not only affect rail life but also impact operational safety, noise emissions, and passenger comfort.

This is where rail milling established entirely new standards.

Unlike traditional rail treatment methods, milling enables complete and highly precise restoration of the rail head - even in cases of severe damage. For infrastructure operators, this means extended rail life, reduced maintenance costs, and increased track availability. As a result, significant financial savings can be achieved while simultaneously delivering substantial sustainability benefits through reduced CO₂ emissions.

Continuous Innovation as a
Key Success Factor

Over the past three decades, the technology has been continuously refined. The focus has always been on increasing machining performance and maximizing flexibility for a wide range of applications.

As early as 1997, LINSINGER began optimizing processing quality. Trials with roughing and finishing milling demonstrated a significant increase in rail life. However, temporary increases in rolling noise were also observed. The solution was the development of angled circumferential grinding - a specialized post-processing method that removes milling facets without altering the rail profile geometry while simultaneously reducing noise emissions.

In 2004, the SF03-FFS was introduced as the first rail milling train with an integrated finishing unit. This concept became the technological benchmark for modern high-performance rail milling trains.

Tailor-Made Solutions for Every Network

Over the years, LINSINGER continuously expanded its portfolio to serve mainline railways, light rails, and metro systems with restrictive tunnel clearances.

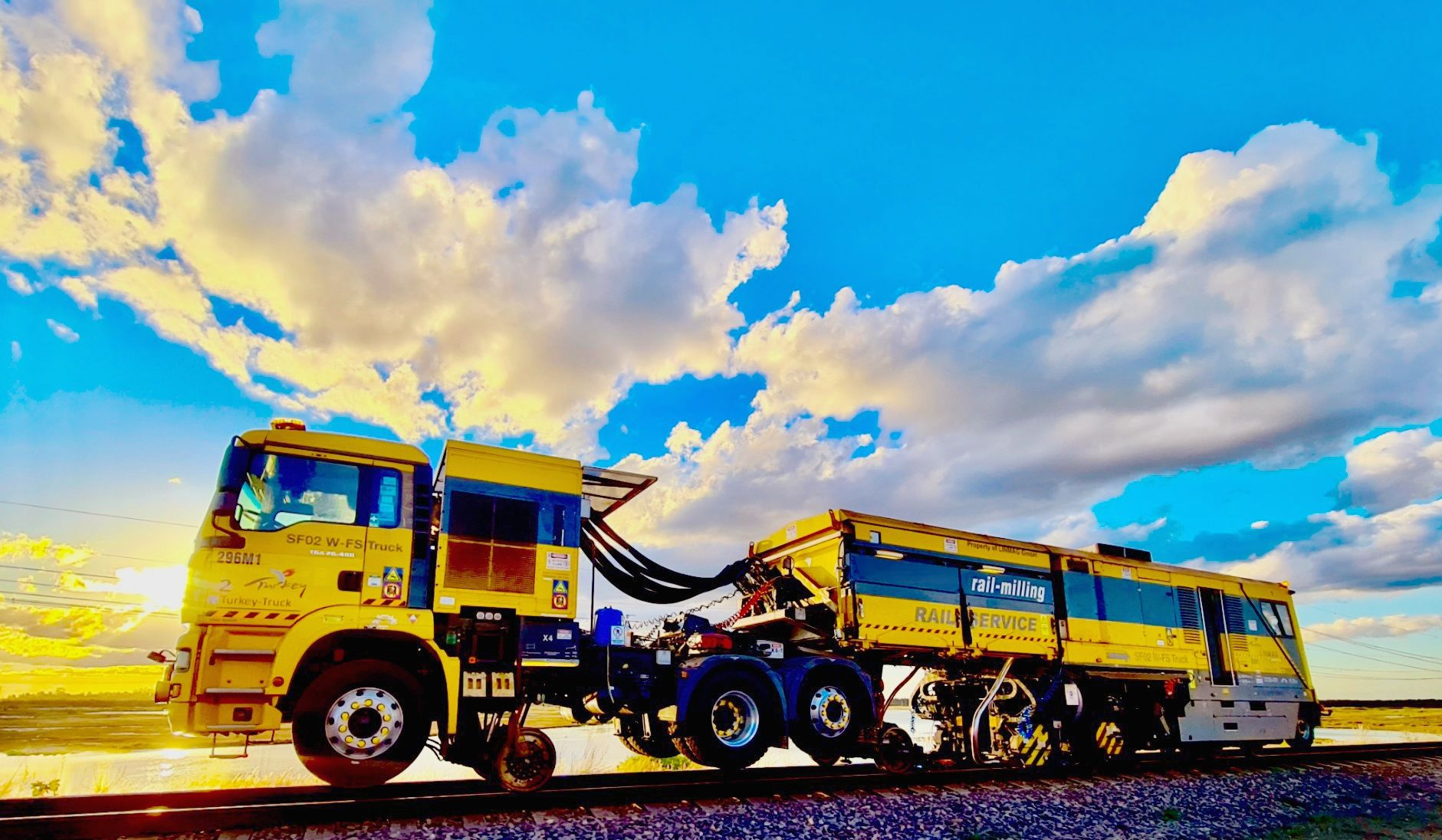

In 2007, the company introduced its first Rail-Road Truck, a two-way rail milling vehicle capable for transfer trips both on rail and road. This enabled highly flexible deployment without complex transfer logistics. In 2011, the SF02 followed, offering exceptional versatility for various rail networks and tight curve radii. In 2016, LINSINGER presented the MG11, at that time the world’s smallest rail milling train, specifically designed for extremely restrictive structure gauges and tunnel applications.

Railmaster® – The Next Generation of Rail Milling

A new chapter in rail milling began in 2023 with the introduction of the Railmaster®.

Building on decades of experience, LINSINGER developed its most powerful and productive rail milling train to date. The modular machine concept allows a wide range of configurations and can be tailored precisely to customer requirements.



The Railmaster® combines maximum milling performance with state-of-the-art measurement and automation technology. Through optimized processes, high operating speeds, and maximum machine availability, it sets new standards in cost-efficient rail maintenance.

The Railmaster® is therefore not merely an evolution of existing systems, but the embodiment of 30 years of expertise, innovation, and continuous technological advancement in rail milling.

LSST – The New Rail Surface Finishing System

Another milestone has been achieved with the development of a new rail head surface treatment process.

The new technology, known as Linsinger Smart Surface Technology, is a cold-forming process that equalizes the periodic milling facets along the rail in the longitudinal direction without heat input or spark generation. It produces a homogeneous and clearly defined surface structure. In addition, the compressive stresses introduced into the rail head contribute to extending rail life.

The finishing system consists of a closed-loop shot peening process, illustrated in the figure below. In combination with the milling process developed by LINSINGER, it represents the world’s first completely spark-free rail maintenance process, clearly distinguishing itself from all other rail maintenance technologies.

Digitalization and Intelligent Measurement Systems

Another major step forward was the integration of digital measurement and analysis systems.

Today, the modular “Linalyzer” measurement system enables numerous quality parameters to be captured in real time during the milling process, including longitudinal and transverse profiles, crack dephs, surface condition assessments, as well as acoustic and optical analyses.

By combining measurements taken before and after machining, comprehensive quality control is achieved, providing the basis for data-driven maintenance strategies.

As a result, rail milling has become not only more precise, but also smarter.

Sustainability at the Core

LINSINGER has also set new benchmarks in sustainability.

In 2020, the company developed the world’s first hydrogen-powered rail milling train - a milestone for emission-free track maintenance and another important step toward climate-friendly railway infrastructure.

With modular platforms such as the Railmaster®, LINSINGER continues to pursue the goal of providing highly flexible and individually configurable solutions for a wide variety of network requirements.

30 Years of Innovation on Track

Three decades of mobile rail milling demonstrate how a visionary idea can evolve into a globally established key technology.

From the first stationary rail milling units to the world’s first rail milling train, from digital measurement systems to hydrogen-powered machines and the new Railmaster®, LINSINGER has redefined the development of modern rail maintenance.

Or, put simply:

Thirty years of experience in rail milling now enable highly precise, sustainable, and cost-efficient solutions for the railway networks of tomorrow.

www.linsinger.com

Photos: Copyright Linsinger

Autor: DI (FH) Walter Kastinger, Chief Operation Officer, Rail Milling Technology
